موتور هيدروليكي Linde Verstellmotor-Axialkolbenmotor Typ:HMV210-02 2532. #HMV210-02.2532#

In stock

-

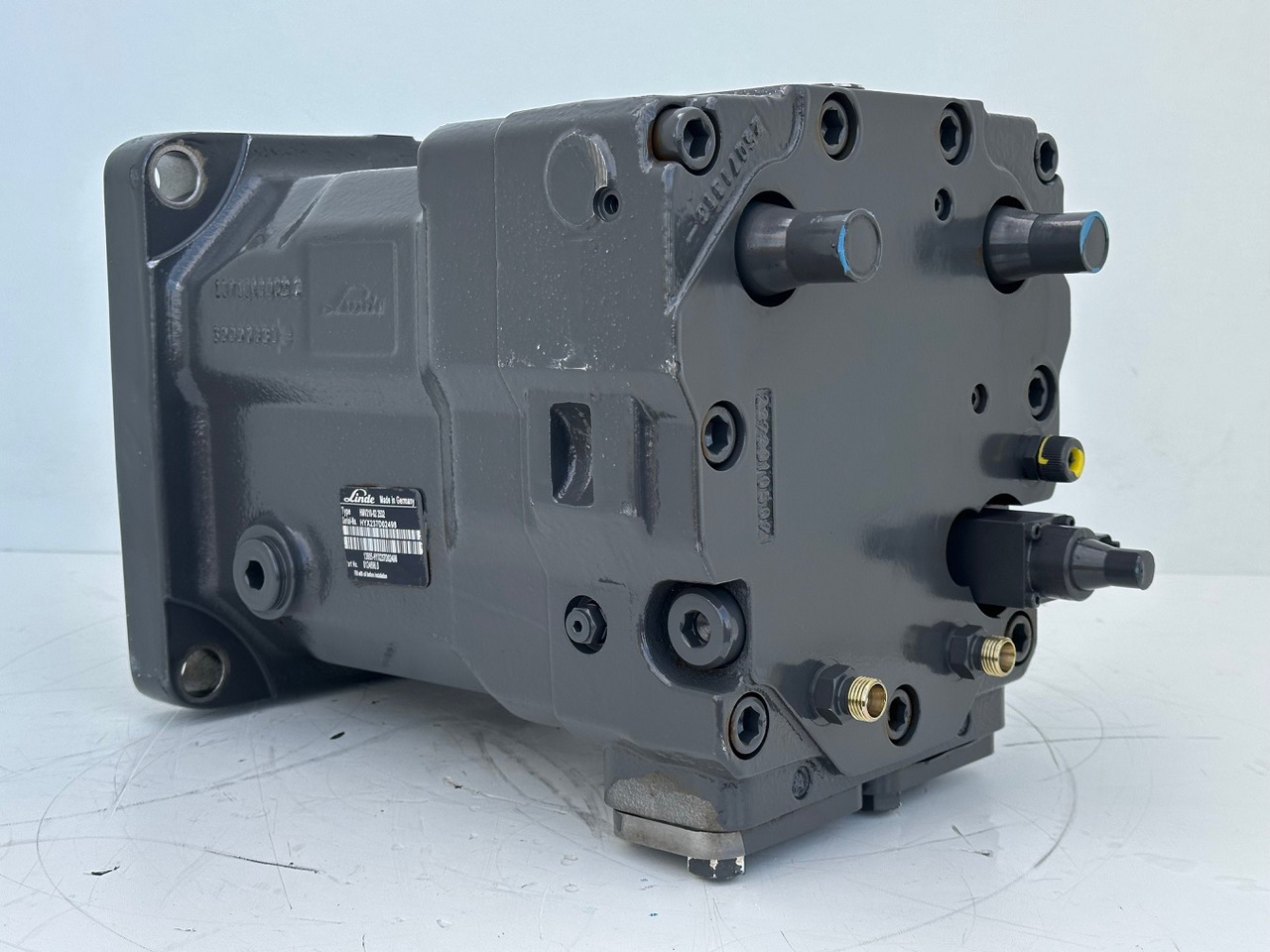

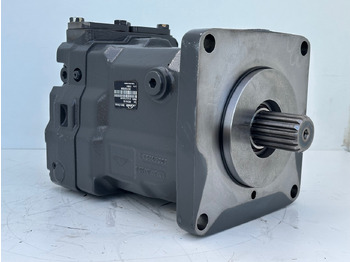

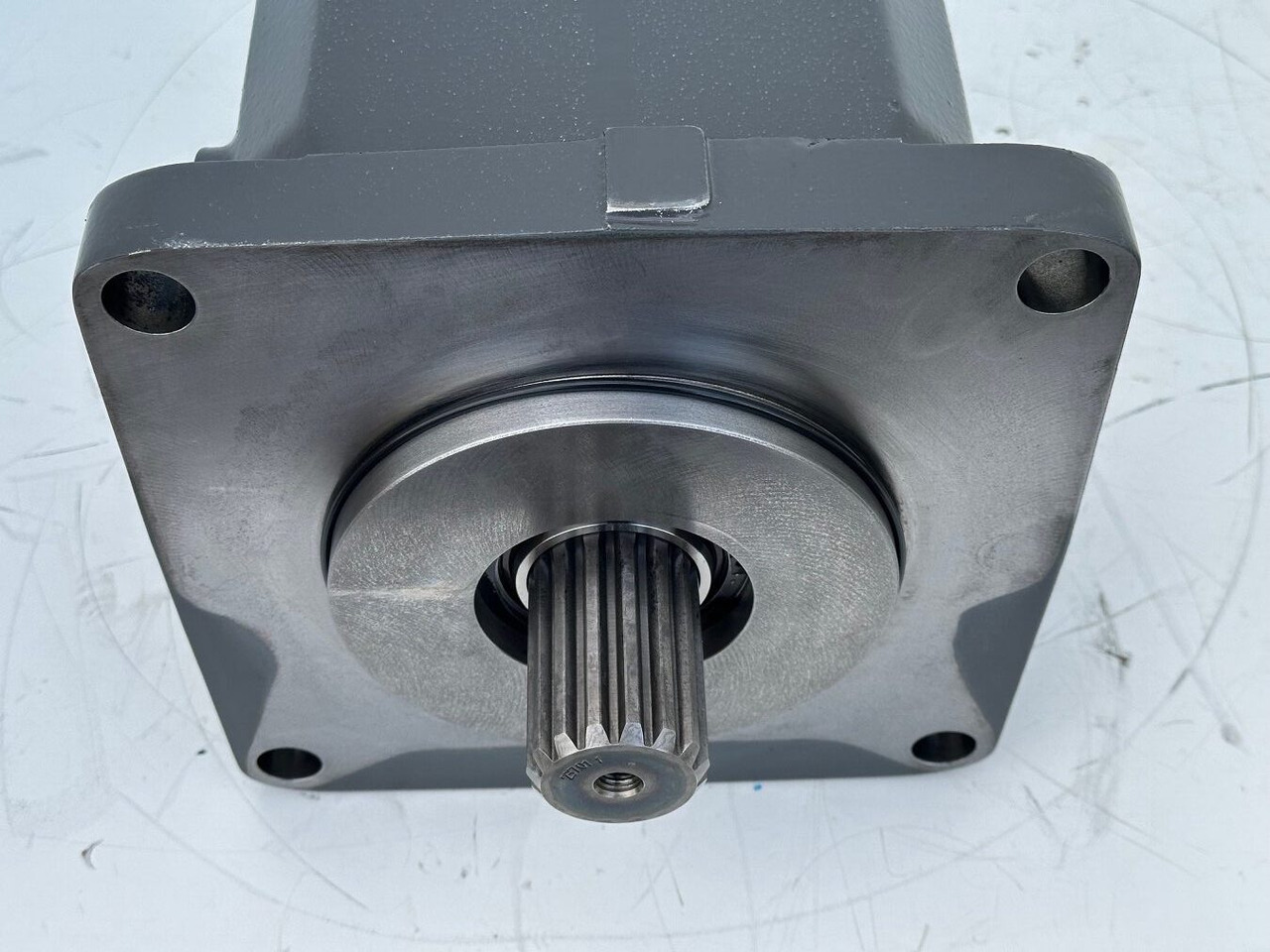

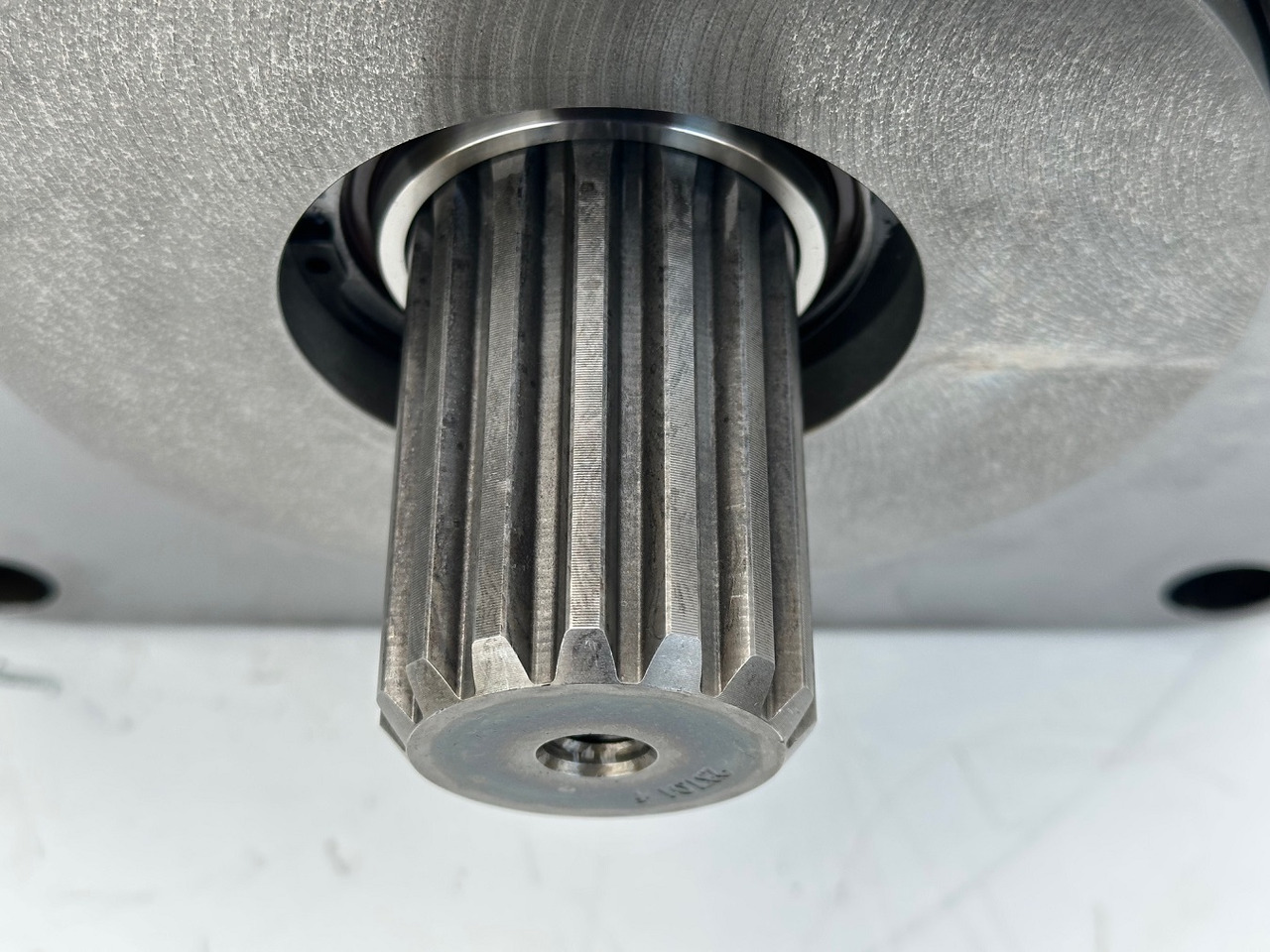

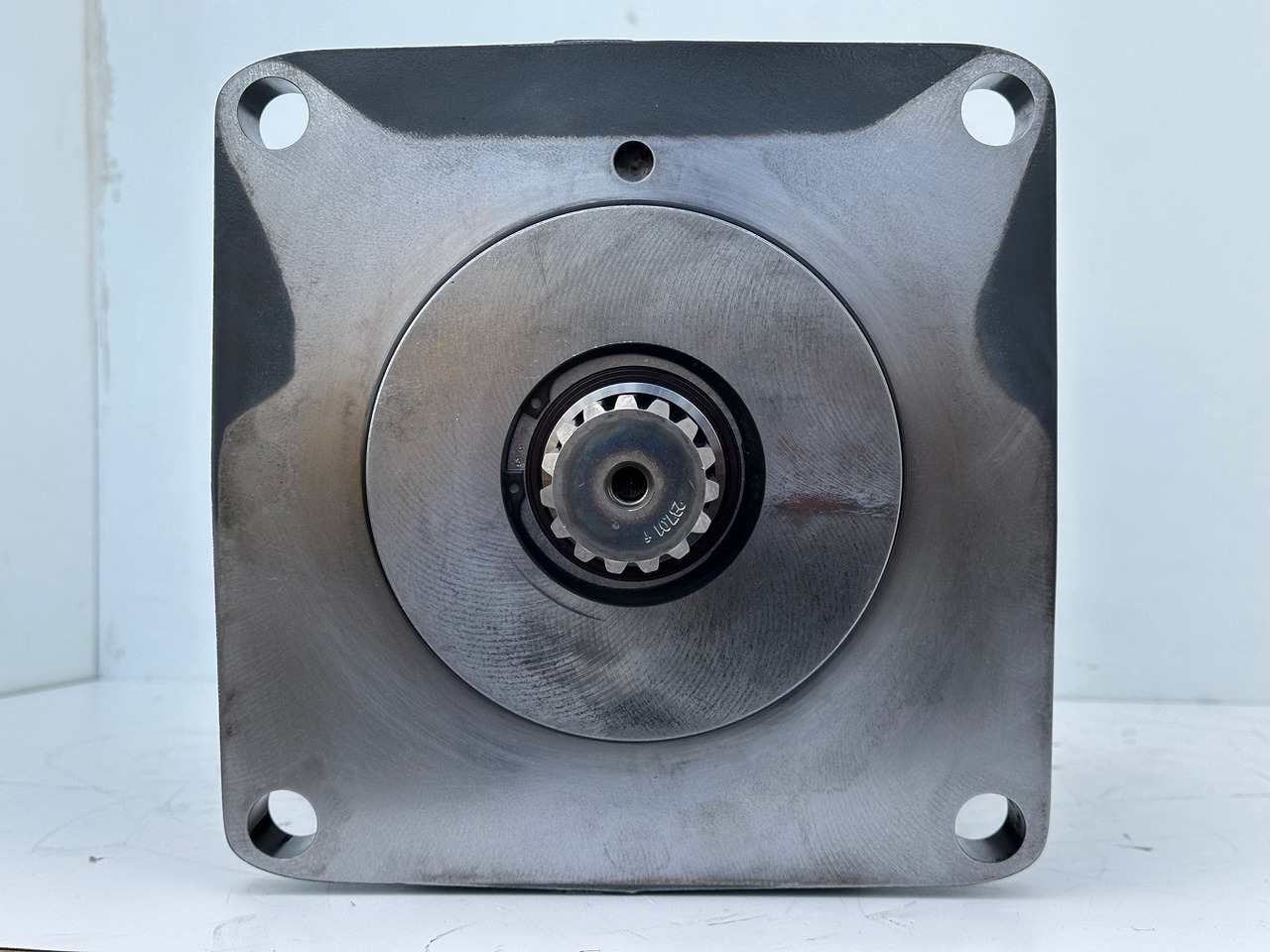

I am selling a Like New Linde Variable Discplacement Motor Type:HMV210-02.

Linde Variable Discplacement Motor Type:HMV210-02R 2532.

Spare Parts Number:0124696.0

Variable Discplacement motors for open and closed circuit operation:

Standard hydraulic motors at low speeds in their starting phase cannot generate the necessary torque. Therefore, the power of the fast spinning hydraulic motors has to be reduced by means of several step gearboxes down to the speed needed on the wheel. Somewhat higher windage losses and poorer mechanical efficiency are benevolently accepted in this context. Quite the opposite holds true for the motors by LHY Powertrain: The motors of the Series 02 are capable of transmitting the required torque even at low speed and make it possible to start smoothly and sensitively.

Advantages:

Jerk-free low speed

High starting torque

Large conversion range

Zero angle possible

Dynamic response

PTO through-drive motor

Compact design

High power density

High reliability

Long service life

Design Characteristics:

Axial piston motor in swashplate design for high pressure closed and open circuit systems

Optimized starting and low speed behaviour

Purge valves for circuit and case flushing optional

Stepless or 2-position control

Electric or hydraulic controls

Superposed pressure control optional

Brake pressure shut off optional

Swivelling to 0 cc/rev

High pressure relief valves available

Through shaft with free shaft end or with coupling flange

SAE high pressure ports radial or axial

SAE mounting flange with ANSI or SAE spline shaft

Plug-in version optional

Speed sensor optional

Counter balance valve optional

Double and tandem motor available

Controls:

H1 hydraulic stepless

H2 hydraulic 2-position

H4 hydraulic stepless Vmin= 0 cc/rev

E1 electro-hydraulic stepless

E2 electro-hydraulic 2-position

E4 electro-hydraulic stepless Vmin= 0 cc/rev

E6 as E4 with inverted shifting

EH1P-CA hydraulic stepless with pressure override and electric pressure selection

Maximum displacement override:

Pneumatic

Hydraulic (high and low pressure)

Electric

The Axial-Piston Motor is in Like New Condition.

!! It is a Like New Axial-Piston Motor !!

If you have any questions or visits, please feel free to contact me.
