تأجير DEKAL ALB-120DU

نشرت: 1سنة 4شهر

تأجير DEKAL ALB-120DU DEKAL ALB-120DU: صورة 2

تأجير DEKAL ALB-120DU DEKAL ALB-120DU: صورة 3

تأجير DEKAL ALB-120DU DEKAL ALB-120DU: صورة 4

تأجير DEKAL ALB-120DU DEKAL ALB-120DU: صورة 5

تأجير DEKAL ALB-120DU DEKAL ALB-120DU: صورة 6

نشرت: 1سنة 4شهر

رقم الاعلان

AV12879

سنة الإنتاج

2024

جديد

الوزن

34 kg

الطول

710 mm

العرض

290 mm

الارتفاه

860 mm

الموقع

Netherlands, Prestwickweg 8 1118 LB Schiphol

إضافات

إيجار

مزيد من المعلومات

Capacity: Frecuency - 400 Hz

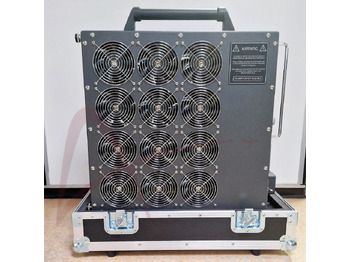

400Hz AC Digital USD Load Bank

Made for GPU’s testing procedure according to ISO 6858, DFS 400, ARP 5015.

Simple operation suitable for non-trained operators.

Silent operations <70 dB(A) at a distance of 7m / 23Ft.

Suitable for workshop and/or airside operation.

Environmental operating temperature from -20 C to 55 C / -4 F to 122 F.

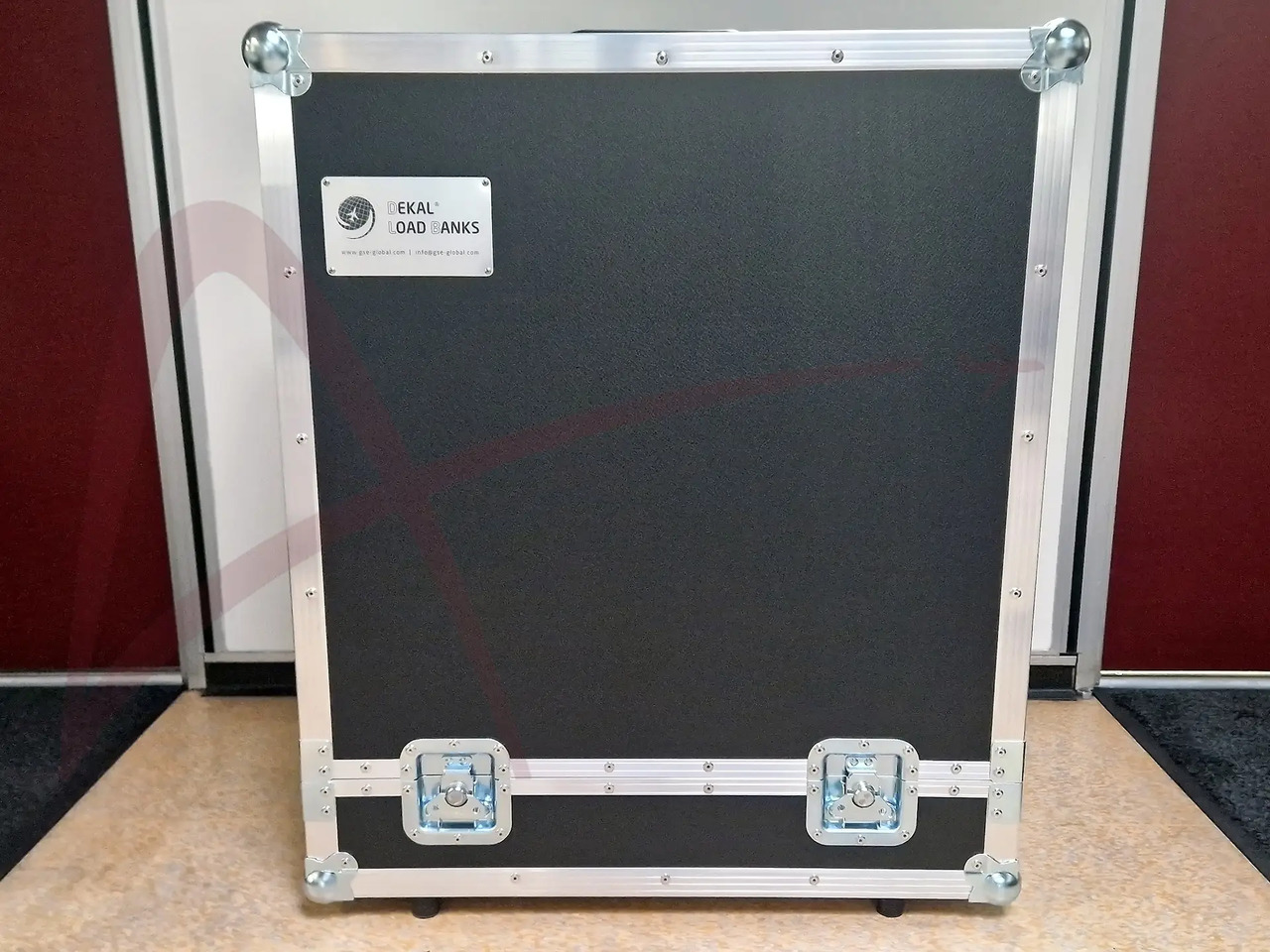

Transport casing with pull-up handle as standard for each load bank.

Triple thermal protection – extremely resistant to high-temperature.

Cant protection – load bank works only in the horizontal position.

Phase detection – load bank works only if all ABC phases are available.

Phase rotation indicator – phase sequence of three-phase voltages.

Fine regulation as standard for all AC – 400 Hz load banks.

Aluminum housing and non-corrosive parts.

High component quality control by manufacturer.

High reliability – effective standardisation process.

Cable pin jacks – unique user-friendly safety feature for external voltage test.

Spare parts availability and accurate on-time deliveries.

Short worldwide delivery period with tracking feature.

Standards & requirements according to ISO 6858, DFS 400, ARP 5015.

Classification CE marking, DIN, VDE, IEC, IP 21 protection rate level.

ALB-120DU – 120 kVA Digital USB

Voltage * Frequency: 115/200V AC +/- 10% * 400 HZ +/- 10%

Load / Lower (kW / kVA cos=1): 0-120 kW +/- 5%

Fine Adjustment – Potentiometer: 0 to 8 kW

Rate Switch Regular Load Steps +/- 5%: 8-16 kW, 16-24 kW, 24-32 kW, 32-40 kW, 40-48 kW, 48-56 kW, 56-64 kW, 64-72 kW, 72-80 kW, 80-88 kW, 88-96 kW, 96-104 kW, 104-112 kW, 112-120 kW.

Force Air Cooling: 88.20 m3/min – 3120 CFM.

Load Bank Size: 600x230x630 mm – 33 kg / 23.6×9.05×24.8 inch – 73 lbs.

Transport Casing: 710x290x860 mm – 19 kg / 27.9×11.4×33.9 inch- 42 lbs.

Load Bank Painting / Transport Casing: Powder Coating Fine Structure 71319 IGP – Swiss Quality / High Grade Aluminum.
