آلة تقطيع الخشب للبيع Trak-Met Piło łuparka mobilna PLD-400 40 CM 20 TON

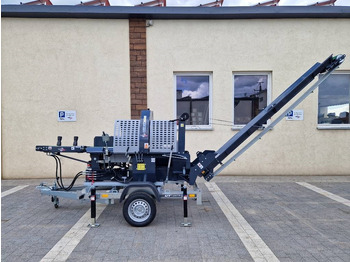

UNIVERSAL AUTOMATIC SAW-SPLITTER PŁD-400/20T

The saw-splitter is a chainsaw with a conveyor used for processing large quantities of firewood or wood for fireplaces. This device combines in one work cycle cutting wood with a chainsaw, splitting it, and transporting it onto a pile using a conveyor belt.

Purpose: Primarily designed for companies involved in wood production for commercial purposes, the machine is also suitable for household, agricultural, landscaping, forestry, and municipal use.

TECHNICAL DATA:

Cutting diameter: 40 cm

Hydraulic cylinder pressure: 20 tons

Adjustable cutting length: 25/55 cm

Drives: Electric 7.5 kW 3000 RPM (optionally 13 HP gasoline engine)

Cutting guide motor: Hydraulic

Sawing: Chainsaw

Automatic high-speed valve for the main piston

Hydraulic power supply: Two hydraulic pump system

Splitting cycle time (including piston return): 3/6 s

Saw-splitter capacity: 4-6 m³/h

Splitting knife: 2/4 parts

Manual adjustment of the splitting wedge height

Log feeder under the cutting guide: 200 mm x 1900 mm

Output conveyor for split wood: 250 mm x 3200 mm

Adjustable wood output conveyor (left-right)

Hydraulic speed control of the output conveyor

Mobile chassis with certification

Optional equipment for an additional cost:

Model PLD 480 CM /30 TON AUTOMATIC

Light transport chassis (non-certified)

Log feeder: 1000x3000 - 6000 x 1000 mm

Log feeder: 1800x3000 - 6000 x 1000 mm

Log feeder: 2200x3000 - 6000 x 1000 mm

6-part splitting wedge

The basic model is equipped with the following functions:

Sawing with a chainsaw guide

Moving the wood under the saw and loading the log using hydraulic levers operated by the operator

Splitting and transporting the split logs automatically, while the operator manually adjusts the log pressing and the wedge height.

The machine is produced with either a 7.5 kW electric motor or a 13 HP gasoline engine. The PŁD-400 features an automatic high-speed valve, which optimizes the main piston force between 7-20 tons. This allows for increased speed when splitting thinner logs and increased force when splitting thicker logs. The automatic high-speed splitting valve significantly reduces work time and power consumption.
