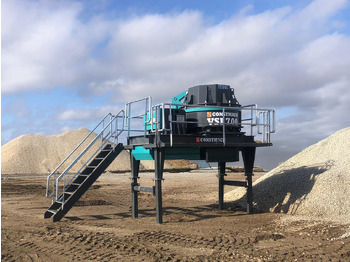

كسارة التصادمية للبيع Constmach Concasseur à Percussion à Axe Vertical d'une Capacité de 65 à 400 T/H

You can call us 24/7 for vertical shaft impact crusher for sale.

Experience the assurance of being one step ahead in the stone crushing business with our VSI-700-CR, VSI-800-CR, VSI-900-CR and VSI-1000-OR models. These high-performance vertical shaft breakers have been designed to make your jobs more efficient by increasing your production capacity with their impressive technical features.​

Each of our stone crushing machines has been optimized for different needs. For example, the VSI-700-CR model offers a compact but powerful solution with a maximum feed size of 35 mm. It has a production capacity of 65-90 tons/hour with a motor power of 110 kW and a rotor speed of 45, 52, 58, 60 m/s. For those who want a higher capacity, the VSI-800-CR model with a maximum feed size of 40 mm is ideal. Supported by two 160 kW motor power, this machine reaches a production capacity of 190-250 tons/hour.

For those who want to further increase their production capacity, the VSI-900-CR model with a 45 mm feed size is an excellent choice. with its 2 x 185 kW motor power and 200-300 ton/hour production capacity, it brings the efficiency of your business to the top. In order to meet the highest capacity requirements, our VSI-1000-OR model has a feeding size of 90 mm and a motor power of 2 x 200 kW, and has a production capacity of 250-400 tons/hour.

Each of our vertical shaft crushers guarantees maximum efficiency in your stone crushing operations by offering superior performance and durability. Thanks to advanced technology rotor designs and powerful motors, it increases the success of your business by providing flexible solutions for different needs. Whether for small-scale or large-scale projects, our stone crushing machines always offer the best performance. If you are looking for a reliable solution to support the growth of your business, meet our vertical shaft breakers and feel the difference.

Technical Characteristics of VSI-700-CR Vertical Shaft Crusher

Maximum Feeding Size: 35 mm

Machine Weight: 6.500kg

Crusher Motor Power: 110 kW

Rotor Diameter: Ø700 mm

Rotor Speed: 45, 52, 58, 60 m/s

Production Capacity: 65 – 90 t/h

Technical Characteristics of VSI-800-CR Vertical Shaft Crusher

Maximum Feeding Size: 40 mm

Machine Weight: 12.000kg

Crusher Motor Power: 2 x 160 kW

Rotor Diameter: Ø900 mm

Rotor Speed: 45, 52, 58, 60 m/s

Production Capacity: 190 – 250 t/h

Technical Characteristics of VSI-900-CR Vertical Shaft Crusher

Maximum Feeding Size: 45 mm

Machine Weight: 14.500kg

Crusher Motor Power: 2 x 185 kW

Rotor Diameter: Ø900 mm

Rotor Speed: 45, 52, 58, 60 m/s

Production Capacity: 200 – 300 t/h

Technical Characteristics of VSI-1000-OR Vertical Shaft Crusher

Maximum Feeding Size: 90 mm

Machine Weight: 15.000kg

Crusher Motor Power: 2 x 200 kW

Rotor Diameter: Ø975 mm

Rotor Speed: 58, 60 m/s

Production Capacity: 250 – 400 t/h
