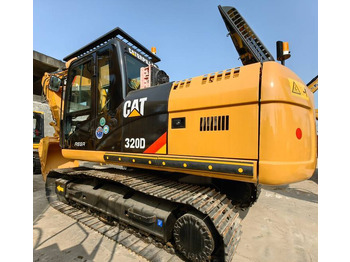

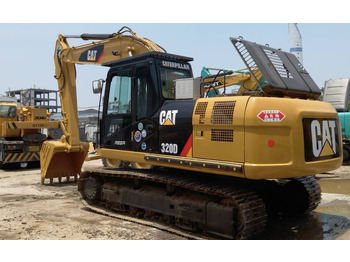

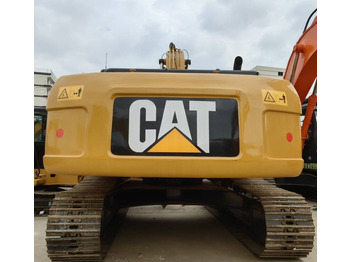

حفار زاحف للبيع CAT 320d Caterpillar Crawler Excavator Warranty up to 10 Years CAT 320d Ковшовий екскаватор Caterpillar Гарантія до 10 Років CAT 320d Caterpillar koparka gąsienicowa Gwarancja do 10 LAT

Machines, equipment, and vehicles qualify for all available assistance programs.

MAXuSA TESTING

You will be able to test each of our tractors or machines within 14 days from the delivery date. This period will allow you to test the equipment in your working conditions.

MAXuSA SERVICES

100+ cooperating stationary service centers and workshops

100+ cooperating mobile service providers

100+ cooperating tow truck services

Become our Client - MAXUS Brand AMBASSADOR

Wondering how it works? To begin with, you will receive the machine for half the price – the rest you will pay by promoting the MAXUS brand.

Together, we can do more.

Join us today – we are waiting for you!

Lacking Cash?

No problem!

We offer both bank and non-bank financing for the machines, equipment, and vehicles we sell.

We can offer:

Operational leasing – both bank and non-bank

Financial leasing

Leasing loan

Investment credit or any other purpose, including EU-supported credits

Factoring loan

Non-bank loan

Leasing is available for businesses and farmers from day one of operations.

Additionally, we offer:

Credit on declaration

No BIK/KRD database checks

Required own contribution

Key Data

Rated Power — Iso 9249: 128.5 kW (175 HP)

Operating Weight: 22,500 kg

Max Digging Depth: 6720 mm

Year of production: 2021

Operating Hours: Only 800 hours

Engine

Rated Power — ISO 9249: 128.5 kW

Engine Model: Cat C4.4e TTA

Engine Power — ISO 14396: 129.4 kW

Cylinder Diameter: 105 mm

Piston Stroke: 127 mm

Displacement: 4.4 L

Hydraulic System

Main System – Max Flow Rate: 429 l/min (113 gal/min)

Max Pressure – Attachment: 35000 kPa

Max Pressure – Travel: 34300 kPa

Max Pressure – Rotation: 27500 kPa

Product Technical Data 320 - Tier 4F/ Stage V (EU)

Hydraulic Fluids Volume

Fuel Tank Capacity: 345 L

Cooling System: 25 L

Engine Oil System: 15 L

Rotation Mechanism – each: 12 L

Final Drive – each: 5 L

Hydraulic System – with tank: 234 L

Hydraulic Oil Tank: 115 L

DEF Tank: 39 L

Dimensions

Boom Reach: 5.7 m (18 ft 8 in)

Arm Reach: 2.9 m (9 ft 6 in)

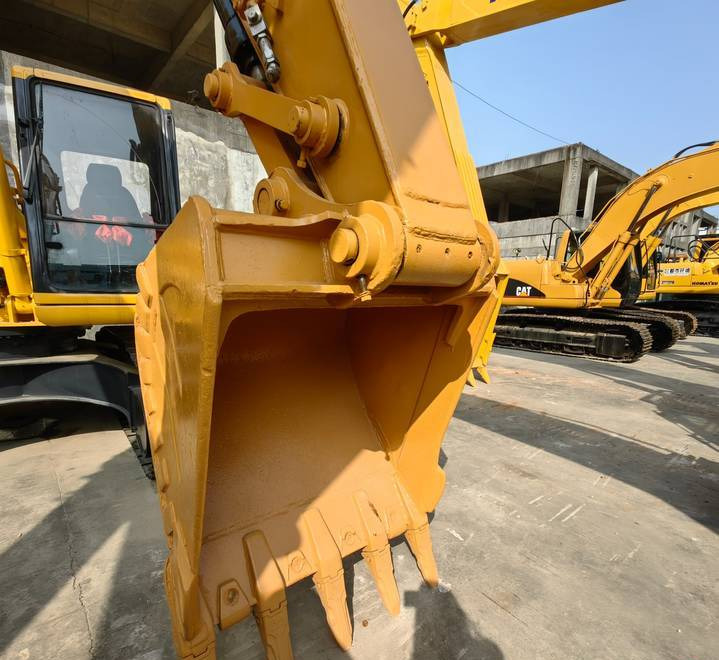

Bucket Capacity: 1.19 m³ (1.56 yd³)

Transport Height – to cabin top: 2960 mm

Handrail Height: 2950 mm

Transport Length: 9530 mm

Tail Swing Radius: 2830 mm

Counterweight Ground Clearance: 1050 mm

Ground Clearance: 470 mm

Track Length: 4450 mm

Track Length to Rollers Center: 3650 mm

Track Gauge: 2380 mm

Transport Width: 2980 mm

Working Ranges and Forces

Max Digging Depth: 6720 mm

Boom Reach: 5.7 m (18 ft 8 in)

Arm Reach: 2.9 m (9 ft 6 in)

Bucket Capacity: 1.19 m³ (1.56 yd³)

Max Reach at Ground Level: 9860 mm

Max Cutting Height: 9370 mm

Max Dump Height: 6490 mm

Min Dump Height: 2170 mm

Max Depth from a flat-bottomed trench (2440 mm/8 ft): 6550 mm

Max Vertical Wall Digging Depth: 5190 mm

Bucket Digging Force – ISO: 150 kN

Arm Digging Force – ISO: 106 kN

If you need a different tractor or machine, we can offer any power or equipment.

No problem – just ask, and you'll get an immediate response.

Every purchase with us is covered by a warranty for the properly executed contract in the amount of:

2,000,000 PLN (two million) and an additional 1,000,000 PLN (one million) securing all our subcontractors in the supply chain.
